Features & Benefits

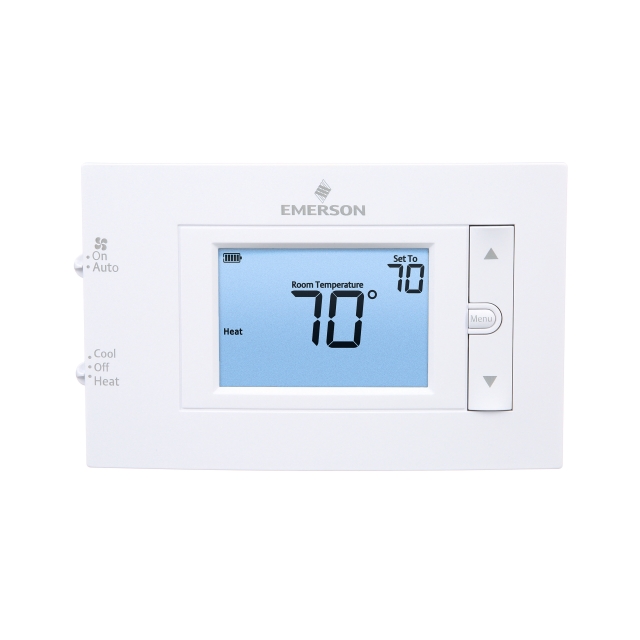

• Attractive Sensi Thermostat Styling for Non-Wi-Fi Applications
• Universal (1-Stage, Multi-Stage, Heat Pump), Conventional and Heat Pump Models Bright, High Contrast Backlight
• Automatic Heat/Cool Changeover Option
• Keypad Lockout and Adjustable Heat/Cool Temperature Limits
• Built-In Dual Fuel Logic Program Eliminates the Need for an Outdoor Sensor

Specifications

• Type: Digital, Non-Programmable, 1-Heat/1-Cool 1-Stage/Heat Pump
• Cover Type: Rectangular Horizontal
• Voltage Rating: Millivolt to 30 Volt AC (Battery), 20 to 30 Volt AC 50/60 Hertz (Hardwire)
• Current Rating: 1.5 Amp
• Temperature Rating: 32 to 105 Deg F
• Size: 6 Inch Width x 1-1/8 Inch Depth x 3-3/4 Inch Height
• Approval: UL, CSA, AHRI, ACCA, ISO 9001, NEC Class 2
• Display Size 4.5 Square Inch
• Terminal Designation RC, RH, C, W, Y, O/B, G
• Set Point Temperature Rating 45 to 99 Deg F
• Display Temperature Rating 32 to 99 Deg F
• Operating Humidity Rating 90 Percent
• Includes Keypad Lockout
• Application Gas/Oil/Electric System
