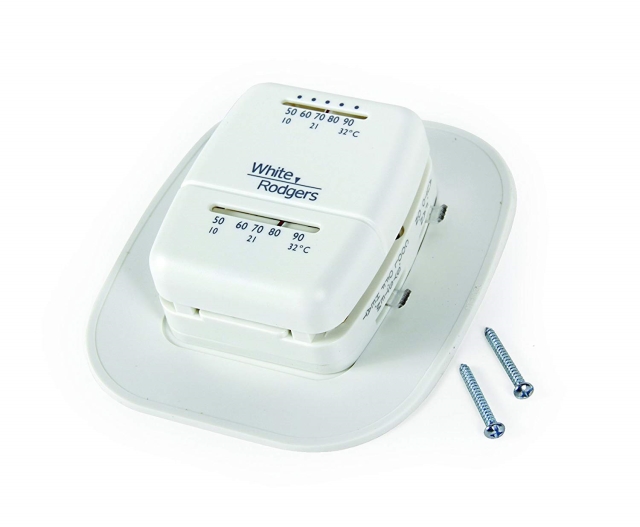

Emerson False, 1H/1C Thermostat
Emerson False, 1H/1C Thermostat
Description
Emerson Electric Co. (White-Rodgers) mV to 30 VAC 50/60 Hz, 0.15 to 1.2 A, Snap Action, White, 1-Heat/1-Cool 1-Stage, Mechanical, Thermostat
Features & Benefits
- Reliable Performance in an Attractive Design
- Rugged Snap-Action Contacts
- Adjustable Heat Anticipator
Specifications
- Type: Mechanical, 1-Heat/1-Cool 1-Stage
- Cover Type: Vertical
- Color: White
- Voltage Rating: Millivolt to 30 Volt AC (Battery) 50/60 Hertz
- Current Rating: 0.15 to 1.2 Amp (Heating)
- Switch Type: Snap Action
- Temperature Rating: 50 to 90 Deg F
- Size: 2-7/8 Inch Width x 1-1/2 Inch Depth x 3-3/4 Inch Height
- Approval: UL, CSA, AHRI, ACCA, ISO 9001
- Mercury-Free
- Thermometer Material Bi-Metal
- Terminal Designation RC, RH, W, Y, O, B, G, A
- Includes Wall Mounting Plate, Switching Sub-Base
Documents
There are no documents available.
Specifications
- BrandEmerson
- Built In Wi-FiFalse
- Digital ProgrammableFalse
- Power MethodHardwired
- Stages1H/1C
- Support Capacitive TouchFalse
- Amps1.2
- ApplicationHeat/Cool
- BacklitFalse
- Height1.875 in
- Length3.75 in
- Parts ApplicationStd heat/Cool
- Temperature Range50 To 90 (10 To 32 C)
- UL ListedFalse
- UL RecognizedFalse
- Voltage24
- Width3.125 in
