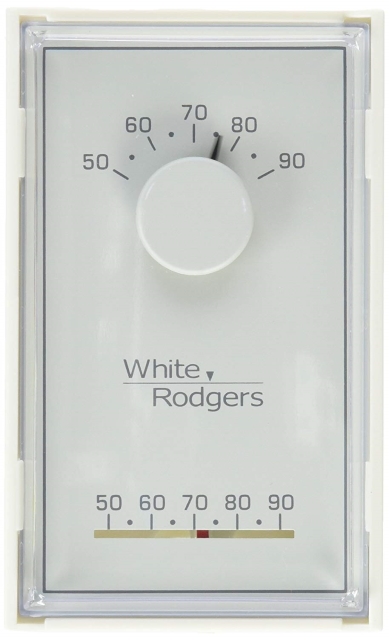

Emerson Non-Programmable, 1 Heat/1 Cool Thermostat
Emerson Non-Programmable, 1 Heat/1 Cool Thermostat
Description
Emerson Electric Co. (White-Rodgers) 20 to 30 VAC, 50 to 90 Deg F, Snap Action, Classic White, Vertical Cover, Universal, Mechanical, 1-Heat/1-Cool Conventional/Heat Pump, Thermostat
Features & Benefits
- Resistant to Vibration
- Mounts to Wall/Junction Box
- Built-In Bi-Metal Thermometer
- Enclosed Snap Action Contacts for Reliable, Economical and Environmentally Friendly Control
- Mercury-Free
Specifications
- Type: Universal, Mechanical, 1-Heat/1-Cool Conventional/Heat Pump
- Cover Type: Vertical
- Color: Classic White
- Voltage Rating: 20 to 30 Volt AC 50/60 Hertz
- Current Rating: 0.15 to 1.2 Amp (Heating/Cooling)
- Switch Type: Snap Action
- Temperature Rating: 50 to 90 Deg F
- Size: 3-1/4 Inch Width x 1-5/8 Inch Depth x 4-1/2 Inch Height
- Switch Type Heat-Off-Cool
- Terminal Designation RC, RH, W, Y, G, O, B, A
- Humidity Rating 0 to 90 Percent (Non-Condensing)
- Includes Mounting Plate, Switched Sub-Base, Auto-On Fan Switch
- Application Gas/Oil/Electric, Electric Heat Strip, 3-Wire Zone Valve, Millivolt System
Documents
There are no documents available.
Specifications
- BrandEmerson
- Built In Wi-FiFalse
- Digital ProgrammableNon-Programmable
- Power MethodHardwired
- Stages1 Heat/1 Cool
- Support Capacitive TouchFalse
- Amps1.2
- ApplicationHeat/Cool
- BacklitFalse
- ColorWhite
- Height1.625 in
- Length4.5 in
- Temperature Range50 To 90 (10 To 32 C)
- UL ListedFalse
- UL RecognizedFalse
- Voltage24
- Width3.25 in
