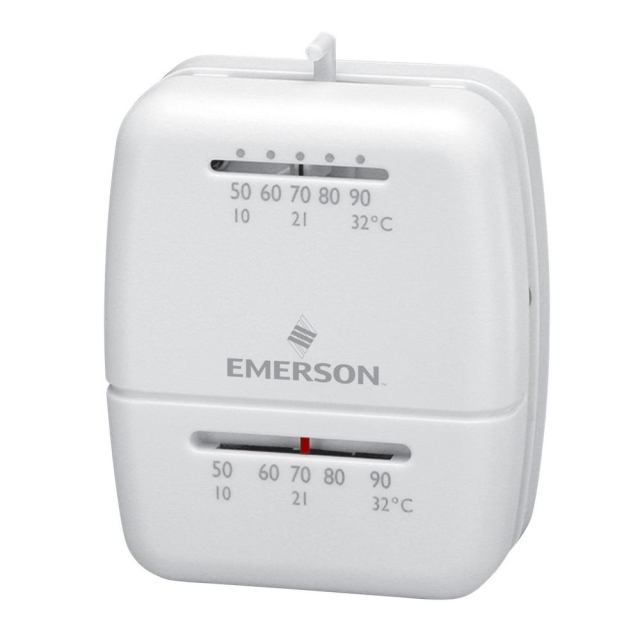

Emerson Non-Programmable, 1 Heat Thermostat
Emerson Non-Programmable, 1 Heat Thermostat
Description
Emerson Electric Co. (White-Rodgers) 30 VAC, 50 to 90 Deg F, Snap Action, Vertical Cover, Mechanical, Economy, Adjustable, 1-Heat, Thermostat
Features & Benefits
- Reliable Performance in an Attractive Design
- Rugged Snap-Action Contacts
- Adjustable Heat Anticipator
- Heat/Cool Model Compatible with Electric Heat Systems
- Mercury-Free
Specifications
- Type: Mechanical, Economy, Adjustable, 1-Heat
- Cover Type: Vertical
- Voltage Rating: 30 Volt AC 50/60 Hertz
- Current Rating: 0.15 to 1.2 Amp (Heating)
- Switch Type: Snap Action
- Temperature Rating: 50 to 90 Deg F
- Size: 2-7/8 Inch Width x 1-1/2 Inch Depth x 3-3/4 Inch Height
- Terminal Designation R, W
- Includes Switching Sub-Base, Bi-Metal Thermometer, Adjustable Heat Anticipator
- Application Gas/Oil/Electric, Electric Heat Strip, Millivolt System
Documents
There are no documents available.
Specifications
- BrandEmerson
- Built In Wi-FiFalse
- Digital ProgrammableNon-Programmable
- Stages1 Heat
- Support Capacitive TouchFalse
- ApplicationHeat Only
- BacklitFalse
- Height1.5 in
- Length3.75 in
- Parts ApplicationStd heat/Cool
- Temperature Range50 To 90 (10 To 32 C)
- UL ListedFalse
- UL RecognizedFalse
- Voltage24
- Width2.875 in
