TXV AFA1/4HC 30IN1/4X3/8-1/2
TXV AFA1/4HC 30IN1/4X3/8-1/2
Description

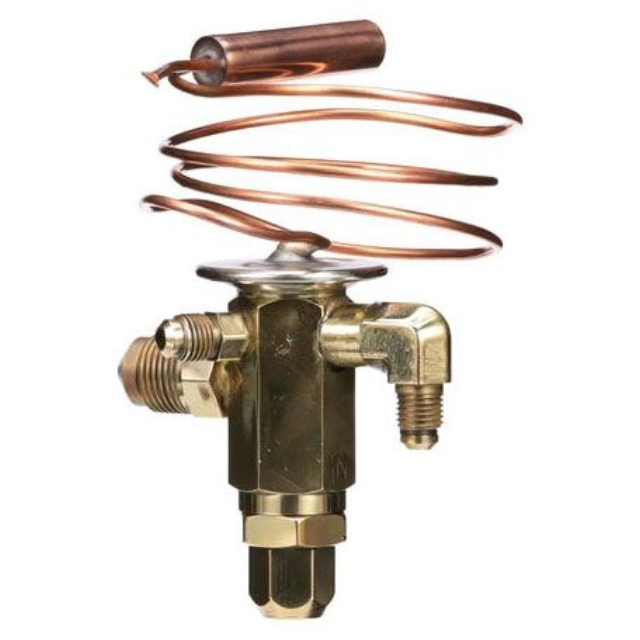

Emerson Electric Co. (White-Rodgers) 1/4" SAE Flare x 3/8 to 1/2" SAE Flare, 700 PSIG, 30" L Capillary, 1/4 Ton Capacity, R-22/R-407C, Internal Equalizer, 90D Angle Body, Thermostatic Expansion Valve for Commercial Refrigeration/Air Conditioner
The AFA Series is designed for air conditioning and commercial refrigeration applications requiring angle configuration SAE connections. The AFA is ideal for those applications requiring compact size combined with stable and accurate control over wide load and evaporator temperature ranges.
Features & Benefits
- Stainless Steel Replaceable Power Assembly Eliminate Corrosion and Prevent Valve Failure
- Two Body Size Provide Capacity from 1/4 to 20 Ton
- Bodies, Cages and Power Assemblies can be Ordered Separately or in Pre-Packaged Service Kits
- Bi-Directional Capability up to 3-1/2 Tons for R-22 on One Valve Superheat Control in Cooling and Heating
Specifications
- Type: Balanced Port Design, Bi-Directional, Adjustable Superheat, Standard Body, 90 Degree
- Nominal Size: 3/8 Inch x 1/2 Inch
- End Connection: ODF Soldered x ODF Soldered
- Pressure Rating: 450 PSIG
- Inclusions/Features: External Equalizer, Stainless Steel Power Assembly, Removable Inlet Strainer
- Exclusions: Bleed Hole
- Application: Refrigerant, Air Conditioner and Heat Pump
- Applicable Standard: UR/CUR, CRN Capillary Tube Length 5 Foot; Refrigerant Type R-22/R-407A; Capacity 2 Ton; Charge Code Medium Temperature; Height 4.03 Inch
Specifications
- BrandFactory Authorized Part
- Configuration90° Angle
- Equalizer LocationInternal
- RefrigerantR22, R407C
- TXV Charge CodeHC
- TXV Connection TypeFlare (SAE)
- TXV Inlet Size1/4"
- TXV Outlet Size3/8"
- TXV SeriesAFA
- Capillary Length30 in
- Maximum Working Pressure700 PSIG
- Rated Capacity Primary Refrigerant0.25
- Shipping Height3.4 in
- Shipping Length3.4 in
- Shipping Point37406
- Shipping Weight0.01 lb
- Shipping Width4.9 in
