TXV AFAE 1/2RC 3/8 X 3/8 SAE
TXV AFAE 1/2RC 3/8 X 3/8 SAE
Description

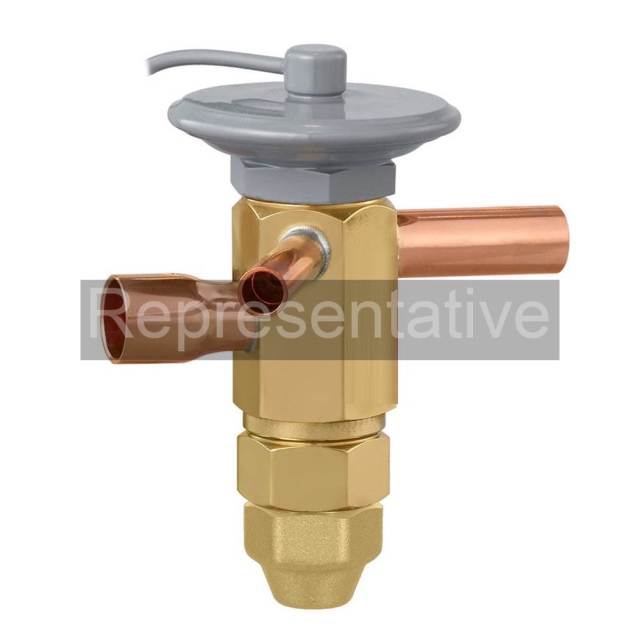

Emerson Electric Co. (White-Rodgers) 3/8" x 3/8 to 1/2", SAE Flare x SAE Flare, 1/2 Ton Capacity, 700 PSIG, R-502, Medium Temperature, Hermetic Design, Adjustable Superheat, 90D, Refrigerant Thermostatic Expansion Valve with External Equalizer and 5 ' Capillary Tube
The AFA Series is designed for air conditioning and commercial refrigeration applications requiring angle configuration SAE connections. The AFA is ideal for those applications requiring compact size combined with stable and accurate control over wide load and evaporator temperature ranges.
Features & Benefits
- Stainless Steel Replaceable Power Element Eliminates Corrosion and Prevents Valve Failure
- Two Body Sizes Provide Capacities from 1/4 to 20 Tons
Specifications
- Type: Angle, Externally Equalizer, Medium Temperature
- Nominal Size: 3/8 Inch x 1/2 Inch
- End Connection: SAE Flare x SAE Flare
- Body Material: Stainless Steel
- Pressure Rating: 450 PSI
- Inclusions/Features: Adjustable Superheat
- Application: Heat Pump, Air Conditioning, Commercial Refrigeration
- Applicable Standard: UR/CUR File Number SA5312 Capillary Tube Length 5 Foot; Capacity 3 Ton; Refrigerant Type R22; Charger Type C
Specifications
- BrandFactory Authorized Part
- RefrigerantR404A, R507
- TXV Inlet Size3/8"
- TXV Outlet Size3/8"
- Maximum Working Pressure700 PSIG
- Shipping Height3.25 in
- Shipping Length4.75 in
- Shipping Point37406
- Shipping Weight1.25 lb
- Shipping Width3.25 in
