TXV AFAE1HC5' 3/8C3/8-1/2 SAE
TXV AFAE1HC5' 3/8C3/8-1/2 SAE
Description

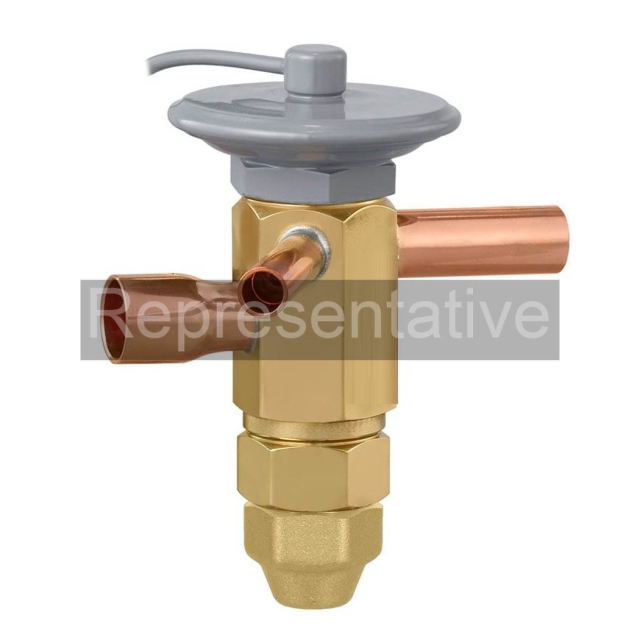

Emerson Electric Co. (White-Rodgers) 3/8" x 3/8 to 1/2", SAE Flare x SAE Flare, 1 Ton Capacity, 700 PSIG, R-22, Medium Temperature, Hermetic Design, Adjustable Superheat, 90D, Refrigerant Thermostatic Expansion Valve with External Equalizer and 5 ' Capillary Tube
The AFA Series is designed for air conditioning and commercial refrigeration applications requiring angle configuration SAE connections. The AFA is ideal for those applications requiring compact size combined with stable and accurate control over wide load and evaporator temperature ranges.
Features & Benefits
- Stainless Steel Power Element Prevents Corrosion and Valve Failure
- External Superheat Adjustment
- Replaceable Inlet Strainer
- Angle Configuration SAE Connection Only
- Wrench Flats on Inlet and Outlet
- External or Internal Equalizer
Specifications
- Type: Hermetic Design, Adjustable Superheat, 90 Degree
- Nominal Size: 3/8 Inch x 3/8 to 1/2 Inch
- End Connection: SAE Flare x SAE Flare
- Pressure Rating: 700 PSIG
- Inclusions/Features: External Equalizer, Stainless Steel Power Element, Replaceable Inlet Strainer
- Application: Commercial Refrigerant, Air Conditioner
- Applicable Standard: UR/CUR, CRN Capillary Tube Length 5 Foot; Refrigerant Type R-22; Capacity 5 Ton; Charge Code Medium Temperature; Height 3.41 Inch
Replacement for
Specifications
- BrandFactory Authorized Part
- Configuration90° Angle
- Equalizer LocationExternal
- RefrigerantR22, R407C
- TXV Charge CodeHC
- TXV Connection TypeFlare (SAE)
- TXV Inlet Size3/8"
- TXV Outlet Size3/8-1/2"
- TXV SeriesAFAE
- Maximum Working Pressure700 PSIG
- Rated Capacity Primary Refrigerant1
- Shipping Height3.4 in
- Shipping Length4.9 in
- Shipping Weight1.15 lb
- Shipping Width3.6 in
