TXV HF1/4HC 5' 3/8C1/2 SAE ANG
TXV HF1/4HC 5' 3/8C1/2 SAE ANG
Description

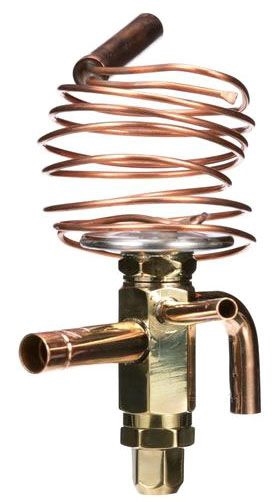

Emerson Electric Co. (White-Rodgers) 3/8" SAE Flare x 1/2" SAE Flare, 450 PSIG, 5' L Capillary, 1/4 Ton Capacity, R-22/R-407C, Internal Equalizer, Angle Body, Thermostatic Expansion Valve for Refrigeration/Air Conditioner and Heat Pump
The HF Series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.
Features & Benefits
- Stainless Steel Replaceable Power Element Eliminates Corrosion and Prevents Valve Failure
- Two Body Sizes Provide Capacities from 1/4 to 20 Tons
Specifications
- Type: Angle, Bi-Directional, Externally Equalizer, Medium Temperature
- Nominal Size: 3/8 Inch x 1/2 Inch
- End Connection: SAE Flare x SAE Flare
- Body Material: Stainless Steel
- Pressure Rating: 450 PSI
- Inclusions/Features: Adjustable Superheat
- Application: Heat Pump, Air Conditioning, Commercial Refrigeration
- Applicable Standard: UR/CUR File Number SA5312 Capillary Tube Length 5 Foot; Capacity 1.5 Ton; Refrigerant Type R22; Charger Type C
Specifications
- BrandFactory Authorized Part
- Equalizer LocationInternal
- RefrigerantR22, R407C
- TXV Charge CodeHC
- TXV Connection TypeFlare (SAE)
- TXV Inlet Size3/8"
- TXV Outlet Size1/2"
- TXV SeriesHF HFS
- Capillary Length60 in
- Maximum Working Pressure450 PSIG
- Rated Capacity Primary Refrigerant0.25
- Shipping Height3 in
- Shipping Length5 in
- Shipping Point37406
- Shipping Weight3 lb
- Shipping Width3 in
