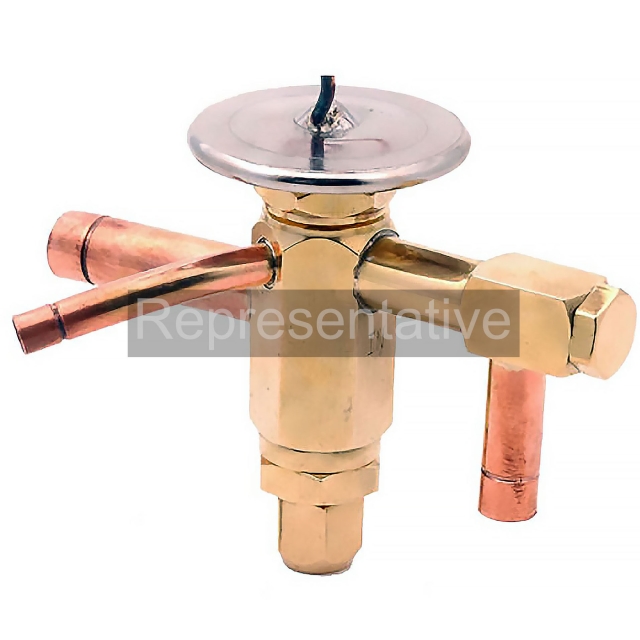

TXV HFE 11/2FC EE 5'3/8X1/2

ALC-054917 MFG #: ALC-054917
  • URN ALC-054917
  • Brand Emerson
  • Equalizer Location Internal
  • Rated Capacity Primary Refrigerant 1.5
  • Refrigerant R12
  • TXV Charge Code FC
  • TXV Connection Type Flare (SAE)
  • TXV Inlet Size 3/8"
  • TXV Outlet Size 1/2"
  • TXV Series HFE HFES
  • Valve Configuration 90° Angle
  • Stainless steel replaceable power element eliminates corrosionand prevents valve failure
  • Two body sizes provide capacities from 1/4 to 20 tons
  • Standard Body HF & HFK
  • The HF is offered several ways: Pre-packaged HFK service kits Include a mix of bodies and power elements with a complete set of cages to serve the most applications with a minimum of parts Individual components . Bodies, cages, & power elements may be ordered separately. Finished valves - Assembled valves ready for immediate installation Bi-Flow capability up to 5-1/2 tons R-22 allows one valve to control the superheat in both cooling and heating modes
  • Extended Body HF Capacity range from 8 to 20 tons (R-22) Finished valve only

The HF series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.
  • ODF or SAE connections
  • Straight-through or angle flow configurations
  • Removable inlet strainer (ODF only)
  • Internal or external equalizer
  • NOTE: If the HF body is stamped HFK, then the cage is replaceable
