TXV HFE 1RZ SAE EE 5' 3/8X1/2
TXV HFE 1RZ SAE EE 5' 3/8X1/2
Description

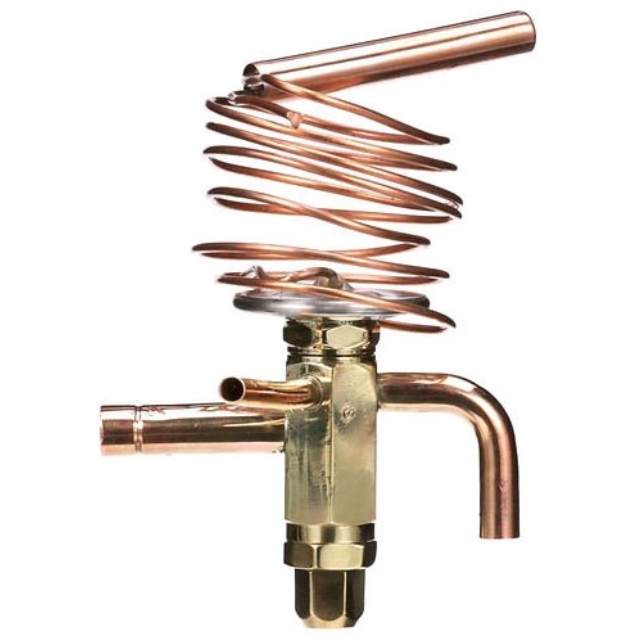

Emerson Electric Co. 5' Cap, 3/8" SAE Flare x 1/2" SAE Flare, 1 Ton, 450 PSIG, Thermostatic Expansion Valve for R-502/R-404A/R-507 Refrigerant
Features & Benefits
- Stainless Steel Replaceable Power Assembly Eliminate Corrosion and Prevent Valve Failure
- Two Body Size Provide Capacity from 1/4 to 20 Ton
- Bodies, Cages and Power Assemblies can be Ordered Separately or in Pre-Packaged Service Kits
- Bi-Directional Capability up to 3-1/2 Tons for R-22 on One Valve Superheat Control in Cooling and Heating
Specifications
- Type: Balanced Port Design, Bi-Directional, Adjustable Superheat, Standard Body, 90 Degree
- Nominal Size: 3/8 Inch x 1/2 Inch
- End Connection: SAE Flare x SAE Flare
- Pressure Rating: 450 PSIG
- Inclusions/Features: External Equalizer, Stainless Steel Power Assembly
- Exclusions: Bleed Hole
- Application: Refrigerant, Air Conditioner and Heat Pump
- Applicable Standard: UR/CUR, CRN Capillary Tube Length 5 Foot; Refrigerant Type R-502; Capacity 1-1/2 Ton; Charge Code Medium Temperature
Documents
Specifications
- BrandFactory Authorized Part
- Equalizer LocationInternal
- RefrigerantR502
- TXV Charge CodeRZ
- TXV Connection TypeFlare (SAE)
- TXV Inlet Size3/8"
- TXV Outlet Size1/2"
- TXV SeriesHFE HFES
- Capillary Length60 in
- Maximum Working Pressure450 PSIG
- Rated Capacity Primary Refrigerant1
- Shipping Height3.2 in
- Shipping Length4.9 in
- Shipping Point37406
- Shipping Weight1.45 lb
- Shipping Width3.5 in
