Factory Authorized Part

TXV HFESC 1 MC OD EE 5'3/8X1/2

SKU:ALC-057570
Factory Authorized Part

TXV HFESC 1 MC OD EE 5'3/8X1/2

SKU:ALC-057570

    Description

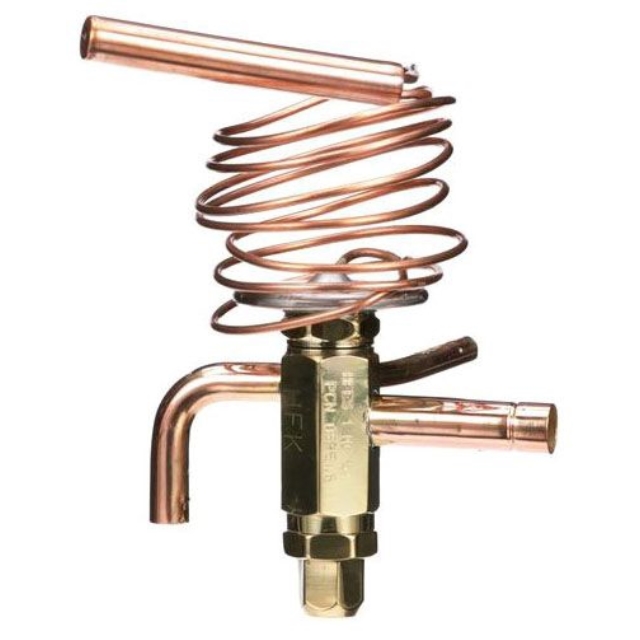

    Emerson Electric Co. (White-Rodgers) 3/8" x 1/2", ODF Soldered x ODF Soldered, 1 Ton Capacity, 450 PSIG, R-134a, Medium Temperature, Balanced Port Design, Bi-Directional, Adjustable Superheat, Standard Body, 90D, Refrigerant Thermostatic Expansion Valve with External Equalizer and 5 ' Capillary Tube

    The HF Series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.

    Features & Benefits

    • Stainless Steel Power Element Prevents Corrosion and Valve Failure
    • External Superheat Adjustment
    • Replaceable Inlet Strainer
    • Angle Configuration SAE Connection Only
    • Wrench Flats on Inlet and Outlet
    • External or Internal Equalizer

    Specifications

    • Type: Hermetic Design, Adjustable Superheat, 90 Degree
    • Nominal Size: 1/4 Inch x 3/8 to 1/2 Inch
    • End Connection: SAE Flare x SAE Flare
    • Pressure Rating: 700 PSIG
    • Inclusions/Features: Internal Equalizer, Stainless Steel Power Element, Replaceable Inlet Strainer
    • Application: Commercial Refrigerant, Air Conditioner
    • Applicable Standard: UR/CUR, CRN
    • Capillary Tube Length 30 Inch; Refrigerant Type R-134A; Capacity 1/2 Ton; Charge Code Medium Temperature; Height 3.41 Inch

    Specifications

    • BrandFactory Authorized Part
    • Configuration90° Angle
    • Equalizer LocationExternal
    • RefrigerantR12, R134A
    • TXV Charge CodeMC
    • TXV Connection TypeSweat (ODF)
    • TXV Inlet Size3/8"
    • TXV Outlet Size1/2"
    • TXV SeriesHFESC
    • Capillary Length60 in
    • Maximum Working Pressure450 PSIG
    • Rated Capacity Primary Refrigerant1
    • Shipping Height6.6 in
    • Shipping Length4.1 in
    • Shipping Point37406
    • Shipping Weight1.55 lb
    • Shipping Width4.3 in
