Factory Authorized Part

TXV TJRE14HC5'7/8X11/8 ODF S/T

SKU:ALC-056417
Factory Authorized Part

TXV TJRE14HC5'7/8X11/8 ODF S/T

SKU:ALC-056417

    Description

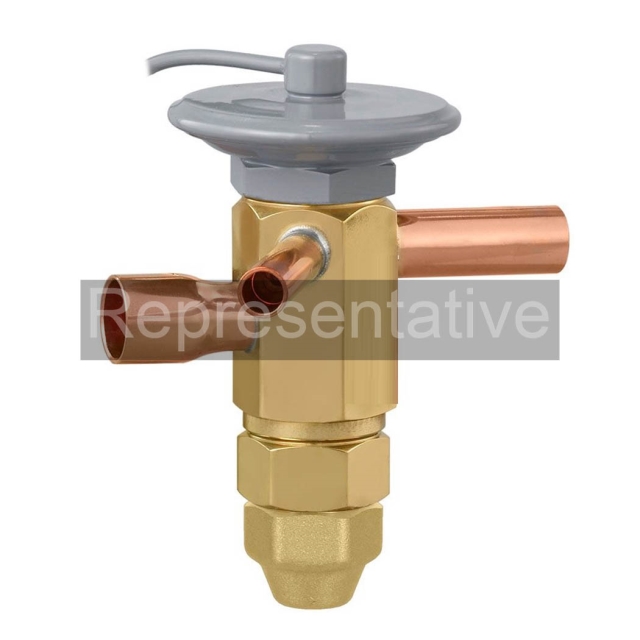

    Emerson Electric Co. (White-Rodgers) 7/8" x 1-1/8", ODF Soldered x ODM Soldered, 14 Ton Capacity, 450 PSIG, R-22, Medium Temperature, Take-Apart, Bi-Directional, Adjustable Superheat, Small Capacity, Straight Through, Refrigerant Thermostatic Expansion Valve with External Equalizer and 5 ' Capillary Tube

    The T-Series Take-Apart valves, with adjustable superheat and replaceable, interchangeable components are ideal for original equipment and field replacements in air conditioning, heat pump and refrigeration applications.

    Features & Benefits

    • Stainless Steel Replaceable Power Assembly Eliminate Corrosion and Prevent Valve Failure
    • Two Body Size Provide Capacity from 1/4 to 20 Ton
    • Bodies, Cages and Power Assemblies can be Ordered Separately or in Pre-Packaged Service Kits
    • Bi-Directional Capability up to 3-1/2 Tons for R-22 on One Valve Superheat Control in Cooling and Heating

    Specifications

    • Type: Balanced Port Design, Bi-Directional, Adjustable Superheat, Extended Body, Straight Through
    • Nominal Size: 5/8 Inch x 1-1/8 Inch
    • End Connection: ODF Soldered x ODF Soldered
    • End to End Distance: 5 Inch
    • Pressure Rating: 450 PSIG
    • Inclusions/Features: External Equalizer, Stainless Steel Power Assembly, Removable Inlet Strainer
    • Exclusions: Bleed Hole
    • Application: Refrigerant, Air Conditioner and Heat Pump
    • Applicable Standard: UR/CUR, CRN
    • Capillary Tube Length 5 Foot; Refrigerant Type R-22/R-407A; Capacity 15 Ton; Charge Code Heat Pump; Height 3.88 Inch

    Specifications

    • BrandFactory Authorized Part
    • TXV Inlet Size7/8"
    • TXV Outlet Size1-3/8"
    • Capillary Length60 in
    • Shipping Height5 in
    • Shipping Length5 in
    • Shipping Weight1 lb
    • Shipping Width7 in
