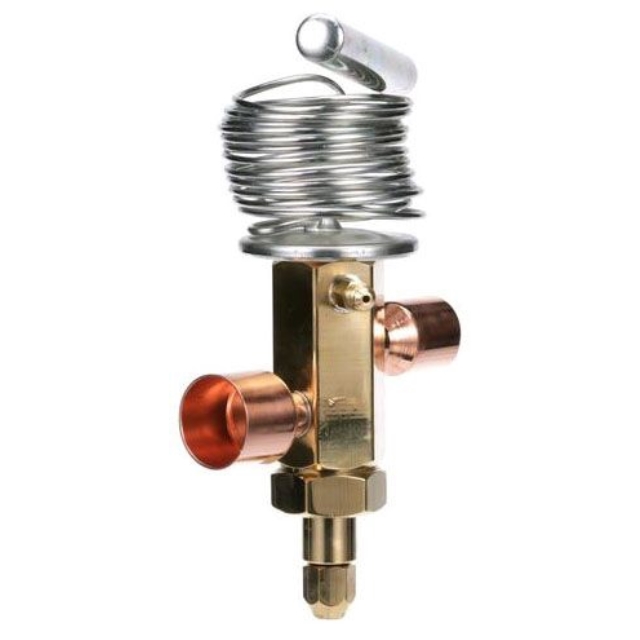

The TRAE Plus series is a large capacity valve designed for refrigeration, air conditioning, heat pump and chiller applications.

Features & Benefits

• Stainless Steel Power Element Eliminate Corrosion and Prevent Valve Failure
• Suitable for Bi-Directional Application
• External Superheat Adjustment
• Integral Body with Straight-Thru Connection
• Balanced Port Design Improve Valve Operation and Stability Over Wide Load and Evaporator Temperature Range
• Solid Copper Connection
• Large Diaphragm Provide Superior Stability
• Permanent Inlet Strainer

Specifications

• Type: Double Balanced Port Design, Bi-Directional, Adjustable Superheat, Large Capacity, Straight Through
• Nominal Size: 7/8 Inch x 1-1/8 Inch
• End Connection: ODF Soldered x ODF Soldered
• End to End Distance: 2.035 Inch
• Pressure Rating: 450 PSIG
• Inclusions/Features: 1/4 Inch SAE External Equalizer, Permanent Inlet Strainer, Large Diaphragm, Cage and Power Assembly
• Application: Refrigerant, Air Conditioner, Heat Pump and Chiller
• Applicable Standard: UR/CUR
Capillary Tube Length 10 Foot; Refrigerant Type R-22; Capacity 15 Ton; Charge Code Maximum Operating Pressure, Pressure Limiting; Height 5.94 Inch; Power Assembly Torque Rating 375 to 425 Inch-Pound
