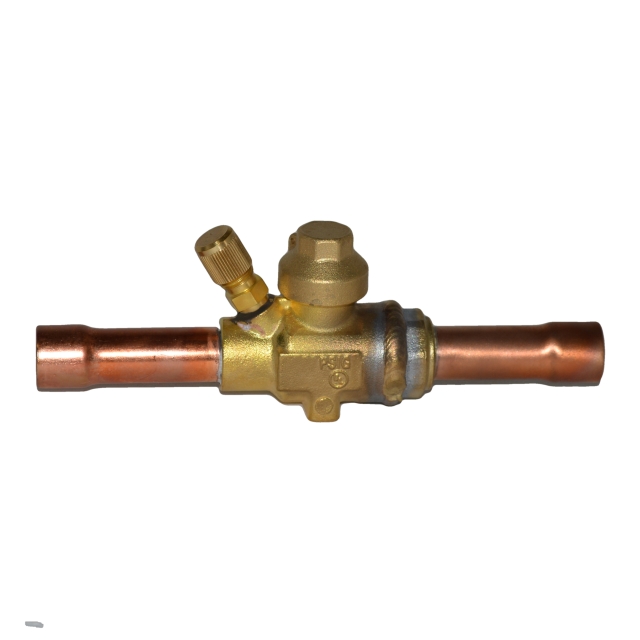

VALVE BALL 5/8"
VALVE BALL 5/8"
Description
- Forged brass body construction with extended copper ends and access fitting
- Port Size .50"
- Ball internal relief port design ensures positive shut-off in either direction
- Dual Teflon seals surround the polished brass ball to prevent leakage.
- All EBVP ball valves are bi-directional and may be installed in any position.
- Full refrigeration service temperature range -40F to +325F (-40C to +149C).
- Design working pressure: 700 psig (49 bar).
Documents
There are no documents available.
Specifications
- BrandFactory Authorized Part
- Body MaterialBrass
- Connection TypeODF Solder
- Inlet Connection Size5/8 in
- RefrigerantR12, R22, R134A, R404A, R407C, R410A
- TypeShutoff Valve
- Height2.14 in
- Length6.5 in
- Maximum Working Pressure700 PSIG
- Shipping Height2.114 in
- Shipping Length6.5 in
- Shipping Weight0.725 lb
- Shipping Width0 in
- TypeBall Valve
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Weight0.74 lb
