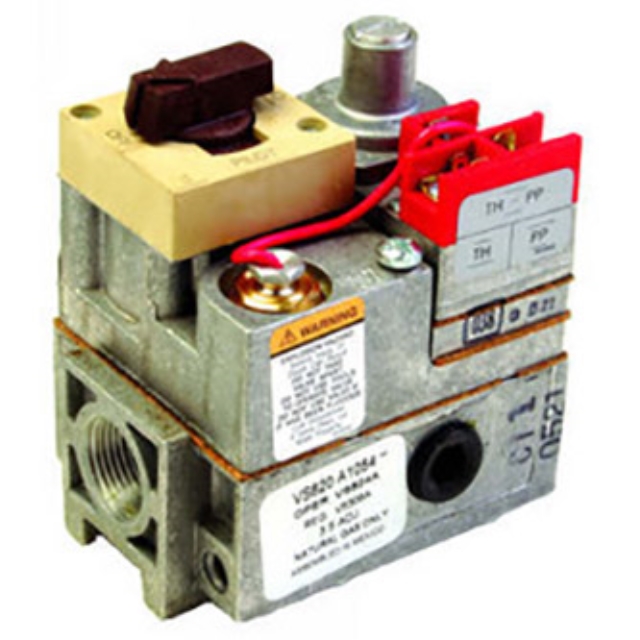

VALVE,GAS
VALVE,GAS
Description
- Include pilot flow adjustment screw
- Easy to install, adjust and service; all adjustments and connections are accessible from top of control
- Add separate energy cutoff (ECO) where codes call for dual safety shutoff
- Complete safety shutoff on pilot flame failure
- LITE-RITE (OFF-PILOT-ON) lighting sequence ECO connector for VS820 models, Part No. 392451-1
- These gas controls are used on gas fired, standing pilot appliances with 750 mV self powered control systems
- They include a manual gas valve, safety shutoff, single milli voltage automatic operator and pressure regulator
- Approvals, Underwriters Laboratories Inc.-UL Component Recognized MCCZ2.MH5323
- Approvals, Canadian Standards Association-CSA International: 112395
- 750mV Standard Opening Gas Valve
- 3/4 x 3/4" with 1/2" Side Outlets
- Set 3.5" WC
Documents
There are no documents available.
Specifications
- BrandFactory Authorized Part
- Pipe Size3/4" x 3/4" in x in
- StyleMillivolt Gas Valve
- Type of FuelNatural Gas
- Voltage24 VAC
- Frequency50Hz, 60Hz
- Fuel TypeNatural Gas
- Height4-3/4" in
- Length3-3/16" in
- Shipping Height6 in
- Shipping Length4 in
- Shipping Weight3 lb
- Shipping Width5 in
- UL ListedTrue
- UL RecognizedTrue
- Voltage24
- Width4-1/16" in
