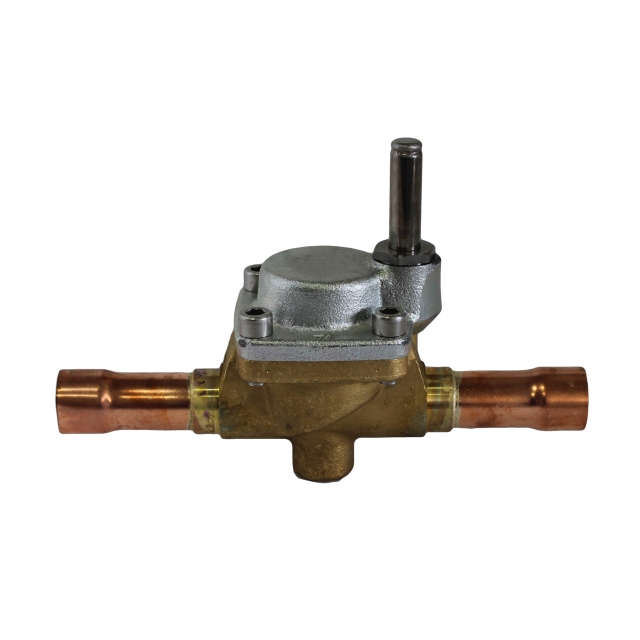

EVR is a direct or servo operated solenoid valve suitable for liquid, suction, and hot gas lines with most refrigerants.

Features & Benefits

• Complete Range of Solenoid Valves for Refrigeration, Freezing and Air Conditioning Plant
• Supplied in Versions Normally Closed (NC) and Normally Open (NO) with De-Energized Coil
• Wide Choice of Coils for AC and DC
• Suitable for Most Refrigerants, Including Flammable Refrigerants
• Extended Ends on Solder Versions Make the Installation Easy, Eliminating the Need to Dismantle the Valve When Soldering In
• RoHS Compliant

Specifications

• Type: Direct/Servo Operated, Straightway
• Port Connection: 1-1/8 Inch ODF Soldered x 1-1/8 Inch ODF Soldered
• Valve Position: NC
• Flow Rate: 11.13 GPM
• Temperature Rating: -40 to 221 Deg F
• Pressure Rating: 655 PSIG
• Mounting Details: Protective Cap
• Media Handled: Gas
• Application: Liquid, Suction and Hot Gas Line with Most Refrigerant and Flammable Refrigerant
• Applicable Standard: PED 2014/68/EU, LVD 2014/35/EU, UL 429, EAC, UA, ATEX Zone 2, CQC
• Actuator Size 13.5 Millimeter
• Orifice Size 25 Millimeter
• Without Coil
