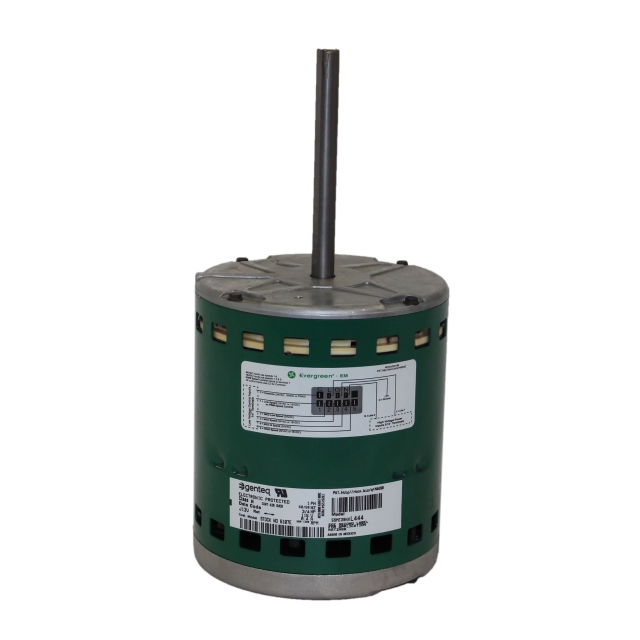

VENDOR MOTOR X13 3/4HP 8.4A
VENDOR MOTOR X13 3/4HP 8.4A
Description
- Replaces X13 or Endura Pro
- Replaces competitive OEM's Direct-Drive Blower motors designed with X-13 or equivalent competitive model constant torque standard ECM with 24VAC speed taps
- Available in 1/3, 1/2, 3/4 and 1HP ratings
- 115V or 208-230V single phase, 50/60 HZ, 1070rpm
- Pre-Programmed - 5 discrete speeds using 24VAC
- Permanently lubricated ball bearings
- NEMA 48 Frame
- UL and CSA recognized
- Automatic Dual Rotation
- Two Year Warranty
- DOES NOT REPLACE MODELS 2.3, Eon, 2.5, 3.0 or 142R
DOES NOT REPLACE MODELS 2.3, Eon, 2.5, 3.0 or 142R
Documents
There are no documents available.
Specifications
- BrandTotaline
- Bearing TypeBall
- Frame Size48
- HP3/4
- Number of Speeds5
- RotationClockwise, Counter Clockwise
- RPM1200
- RPM Range1001-1100
- Shaft Diameter1/2
- TypeDirect Drive
- TypeECM Blower Motor
- VarietyX-13
- Voltage115V
- CSA ListingTrue
- Frequency50Hz, 60Hz
- Full Load Amps8.4
- Height5.6 in
- Length11.45 in
- Motor Phase1
- Motor RPM1070
- Service Factor1
- Shaft Length4.5 in
- Shipping Height8.4 in
- Shipping Length16.9 in
- Shipping Point37406
- Shipping Weight15.65 lb
- Shipping Width8.2 in
- UL ListedTrue
- UL RecognizedTrue
- Voltage115
- Warranty2 Years
- Weight15.6 lb
- Width5.58 in
