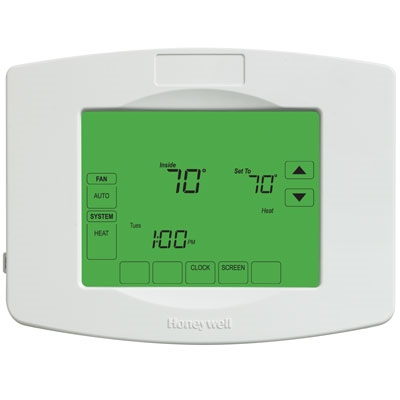

Honeywell 7 Day, 3 Heat/2 Cool Thermostat With Built in Wi-Fi
Honeywell 7 Day, 3 Heat/2 Cool Thermostat With Built in Wi-Fi
Description
Honeywell International Inc. / Resideo Technologies, Inc. VisionPRO® 20 to 30 VAC at 50/60 Hz, 1 A Heat/Cool, 0.6 A Fan, 40 to 90 Deg F Heat/50 to 99 Deg F Cool Setting, Premier White, Horizontal Mount, 7 Day Programmable/Non-Programmable, 3-Stage Heat/2-Stage Cool Heat Pump, 2-Stage Heat/2-Stage Cool Conventional, Auto/Manual Changeover, Hardwire, Thermostat
Features & Benefits
- Visionpro Z-Wave Offers You Top-of-the-Line Features Like Touchscreen Interaction, A Real-Time Clock and a Large, Easy-to-Read Backlit Display to Easily Integrate Comfort Control into Your Automated Home
Specifications
- Type: 7-Day Programmable/Non-Programmable, 3-Stage Heat/2-Stage Cool (Heat Pump), 2-Stage Heat/2-Stage Cool (Conventional), Auto/Manual Changeover
- Color: Premier White
- Voltage Rating: 20 to 30 Volt AC 50/60 Hertz
- Current Rating: 1 Amp (Heat/Cool), 0.6 Amp (Fan)
- Size: 6-2/5 Inch Width x 1-19/46 Inch Depth x 4-23/25 Inch Height
- Mounting Type Horizontal
- Display Size 10 Square Inch
- Power Method Hardwired
- Terminal Designation R, Rc, W-O/B, Y, G, C, Y2, L, E, Aux, K
- Sensor Element Thermistor
- Switch Position Heat-Off-Cool-Auto-EM-Heat (System), Auto-On-CIRC (Fan)
- Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
- Application Z-Wave Thermostat
Documents
Specifications
- BrandHoneywell
- Built In Wi-FiTrue
- Digital Programmable7 Day
- Line Voltage (60Hz)24V AC
- Power MethodHardwired
- Stages3 Heat/2 Cool
- Support Capacitive TouchFalse
- BacklitTrue
- Parts ApplicationHP W/Aux
- UL ListedFalse
- UL RecognizedFalse
