Factory Authorized Part

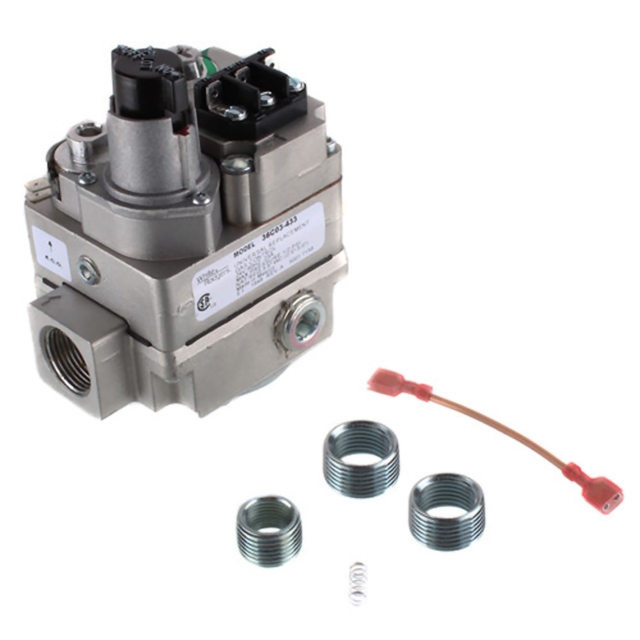

Gas Valve, 24VAC 3/4"x3/4" Standing Pilot SideTap

SKU:36C03-433
Factory Authorized Part

Gas Valve, 24VAC 3/4"x3/4" Standing Pilot SideTap

SKU:36C03-433

    Description

    36C Fast Opening Gas Valve

    • Valve may be mounted in any position except upside down
    • Gas cock knob, pilot adjust screw and regulator adjustment are on top of control
    • Easy-grip pipe boss simplifies installation
    • Use with thermocouples
    • Natural gas, includes LP conversion kit and reducer bushing kit
    • -333 Does not include inlet pressure tap, -433 does

    Documents

    There are no documents available.

    Specifications

    • BrandFactory Authorized Part
    • Pipe Size3/4" x 3/4" in x in
    • StagesSingle Stage
    • StyleCombination Gas Valve
    • Type of FuelLiquid Propane, Natural Gas
    • Voltage24 VAC
    • Fuel TypeLP, Natural Gas
    • Gas Valve Capacity280000 btu
    • Height4.7 in
    • Length6 in
    • Max Pressure Rating1/2 PSI (14.0" W.C.)
    • Maximum Pressure0.5
    • Shipping Height6 in
    • Shipping Length6 in
    • Shipping Weight1 lb
    • Shipping Width6 in
    • Voltage24
    • Weight2.295 lb
    • Width4.8 in
