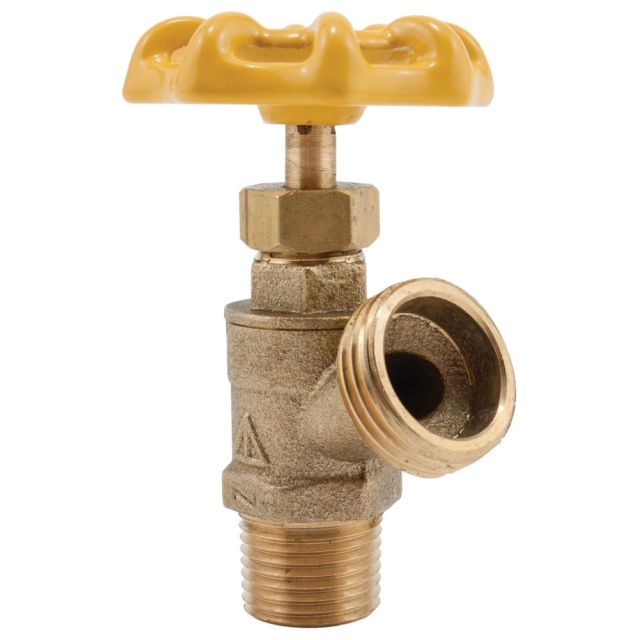

Boiler Drain Shut-Off, BD1C 1/2" Dual Connection Angle
Boiler Drain Shut-Off, BD1C 1/2" Dual Connection Angle
Description
Watts Water Technologies, Inc. (Watts) 1/2" x 3/4", MPT x MHT, 200 PSI WOG Non-Shock, Brass, Handwheel, Angle, Reducing, Boiler Drain Shutoff
This 1/2 inch angle pattern brass boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a brass body construction and 1/2 inch dual connection for either solder or male IPS and 3/4 inch hose thread connection, Teflon stem packing, and cast iron handwheel
Specifications
- Type: Boiler, Angle, Reducing
- Actuation Type: Handwheel
- Nominal Size: 1/2 Inch x 3/4 Inch
- End Connection: Male IPS Threaded x Male Hose Threaded
- End to End Distance: 1-1/3 Inch
- Overall Dimensions: 3-1/2 Inch Height
- Body Material: Brass
- Temperature Rating: 180 Deg F
- Pressure Rating: 200 PSI WOG (Non-Shock)
- Application: Residential and Commercial
- Stem Material Non-Stick
Documents
Specifications
- BrandWatts
- ApplicationWater
- Inlet Connection Size1/2" in
- Outlet Connection Size1/2" in
- StyleBoiler Drain Valve
- TypeShutoff Valve
- UL ListedFalse
- UL RecognizedFalse
