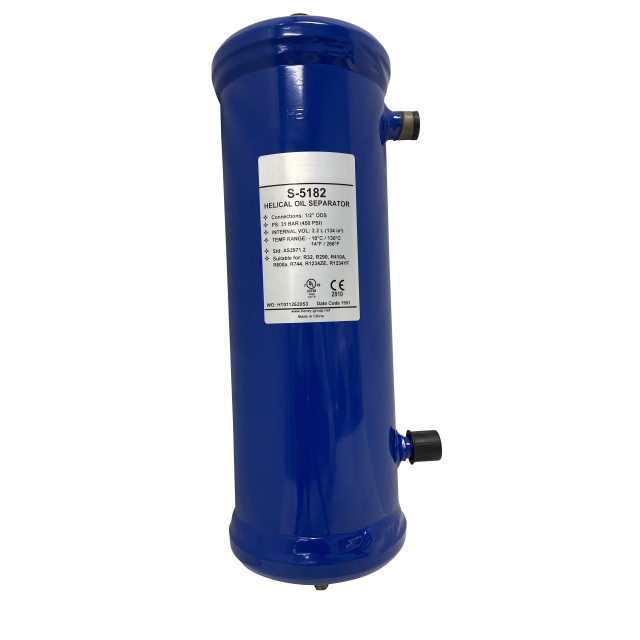

The Function Of A Conventional Oil Separator Is To Remove Oil From The Discharge Gas And Return It To The Compressor, Either Directly Or Indirectly. This Helps Maintain The Compressor Crankcase Oil Level And Raises The Efficiency Of The System By Preventing Excessive Oil Circulation.

Features & Benefits

• Low Pressure Drop

Specifications

• Type: Oil
• End Connection: ODS x ODS
• Overall Length: 483 Millimeter
• Application: HCFC and HFC Refrigerant, Multi-Compressor, Rack and Remote, Condensing Unit
• Applicable Standard: CE
Overall Dimension 102 Millimeter Diameter; Oil Return Connection 3/8 Inch SAE Flare; Mounting Details M10; Operating Pressure Rating 0 to 31 Bar; Operating Temperature Rating -10 to 130 Deg C; Material Carbon Steel (Shell/End Cap Connection), Stainless Steel (Oil Float), Needle Valve Seat (Steel)
