Features & Benefits

• Suitable for Bi-Flow Applications
• External Superheat Adjustment
• Integral Body with Straight-Thru Connection
• Balanced Port Design Improve Valve Operation and Stability Over Wide Load and Evaporator Temperature Range
• Solid Copper Connection
• Large Diaphragm Provide Superior Stability

Specifications

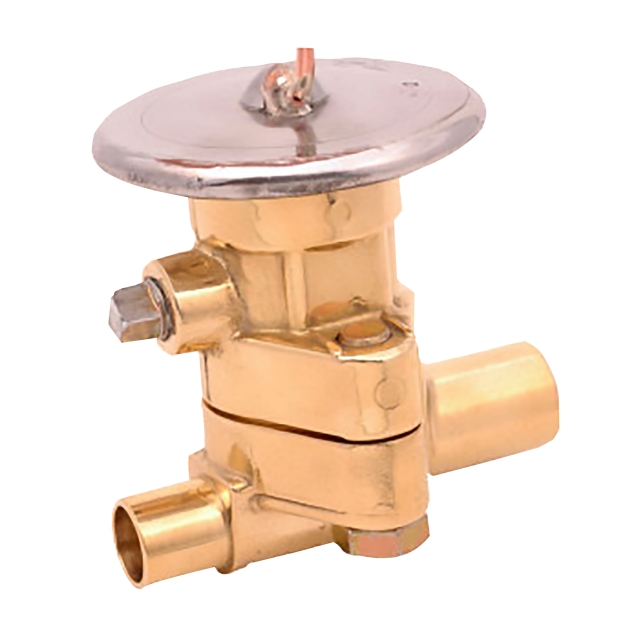

• Type: Hermetic Balanced Port Design, Bi-Directional, Adjustable Superheat, Large Capacity, Straight Through
• Nominal Size: 1-1/8 Inch x 1-3/8 Inch
• End Connection: ODF Soldered x ODF Soldered
• End to End Distance: 4.6 Inch
• Pressure Rating: 450 PSIG
• Inclusions/Features: 1/4 Inch SAE External Equalizer, Large Diaphragm
• Application: Refrigerant, Air Conditioner, Heat Pump and Chiller
• Applicable Standard: UR/CUR
Capillary Tube Length 10 Foot; Refrigerant Type R-22; Capacity 70 Ton; Charge Code Medium Temperature; Height 6.34 Inch
