This product has been superseded by
.jpg?width=350&height=200)

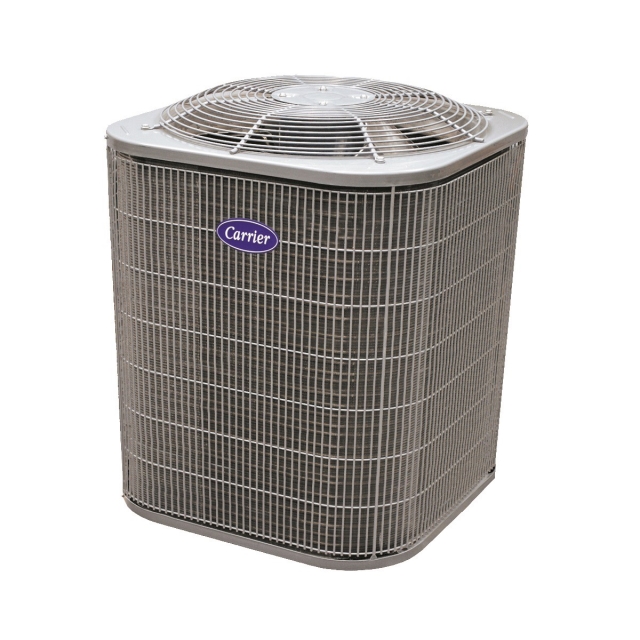

13S PURON 5.0T A/C UNIT 208/230-1 ALUM COIL
This product has been superseded by
13S PURON 5.0T A/C UNIT 208/230-1 ALUM COIL
Description
CA13NA06000L
CA13 = 13 SEER Air Conditioner with Puron Refrigerant
N = 208/230–60–1
A = Puron
060 = 60,000 Btuh
0 = Design Variation
0 = Northern Region
L = Dense Grille with Aluminum Tube Coil
Documents
- Brochure - Homeowner
- Warranty Card
- CA13NA018-060 / CA16NA018-030 Split-System Air Conditioner with R-410A Refrigerant
- Carrier CA13NA018-060 Single-Stage Air Conditioner with Puron Refrigerant
- CA13NA 018-060 CA14NA 018-060 CA15NA 018-060 CA16NA 024-060 CA16NW 018-060 Split-System Air Conditioners With R-410A Refrigerant
Specifications
- BrandCarrier
- CoastalFalse
- Compressor Stage1
- ConfigurationVertical
- Cooling Capacity57500
- Gas Stages1-Stage
- RefrigerantR410A
- Tonnage5
- Voltage (Phase)208/230 V 1-Phase
- Air FlowVertical
- Coil Guard TypeGrill
- CompressorScroll
- Compressor RLA22.1
- Compressor TypeScroll
- Condenser Motor HP1/4
- Condenser Motor Phase1
- Condenser Motor RPM1110 rpm
- Condenser Motor TypePermanent Split Capacitor
- Frequency60
- Height28.25 in
- High PressureFalse
- High Pressure SwitchTrue
- InverterFalse
- LEED CertifiedFalse
- Length31.19 in
- Liquid Line FittingSweat
- Liquid Line Size3/8
- Low PressureFalse
- Low Pressure SwitchTrue
- LRA125
- Max Sound Level79
- Maximum Circuit Breaker50
- Maximum EER11.5
- Maximum Piping Length250
- Maximum SEER13.5
- Maximum Voltage253
- MCA29
- Metering DeviceTXV
- Minimum EER10.5
- Minimum Heating Ambient Temperature-20
- Minimum SEER13
- Minimum Voltage197
- Motor Phase1
- Number Of Fan Blades3
- Outdoor Fan Motor FLA1.45
- Outdoor FPI20
- Outdoor Number of Rows2
- SEER13
- Shipping Height29.88 in
- Shipping Length32.19 in
- Shipping Weight196 lb
- Shipping Width32.19 in
- Sound BlanketFalse
- Sound BlanketFalse
- Suction Line FittingSweat in
- Suction Line Size1 1/8
- UL ListedFalse
- UL RecognizedFalse
- Voltage208/230-208/240-1-60
- Weight179 lb
- Width31.19 in
Equipment Parts List
There is no data available for this product
