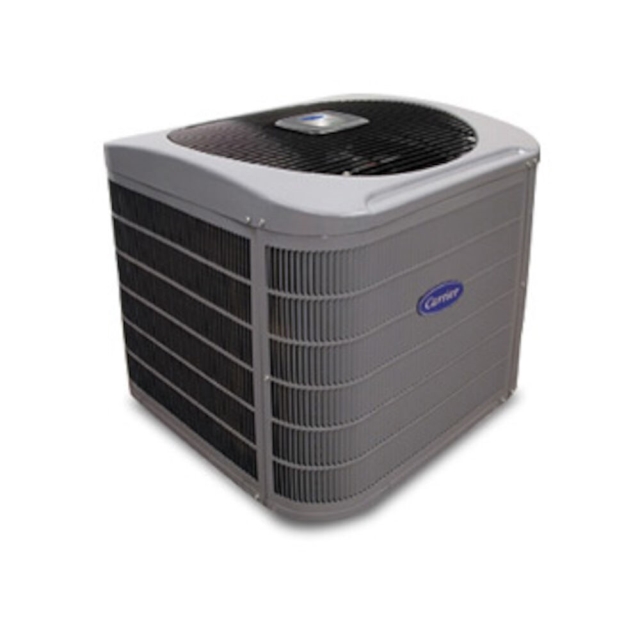

Description
24ACA418C003
24A = Comfort Series Air Conditioner
C = Comfort
A = Puron
4 = 14 SEER
18 = 18,000 Btuh
C = Coastal
0 = Not Defined
0 = Not Defined
3 = 208/230 --- 1
24A = Comfort Series Air Conditioner
C = Comfort
A = Puron
4 = 14 SEER
18 = 18,000 Btuh
C = Coastal
0 = Not Defined
0 = Not Defined
3 = 208/230 --- 1
Standard Features
- WeatherShield™ protection featuring ArmorPlate™ coil coating, 100% paint coverage and WeatherArmor™ protection for superior sea coast corrosion resistance
- 14 SEER cooling efficiency
- Sound: as low as 73 decibels
- Single-stage operation
- Filter drier system protection from moisture and contaminants
- Non-ozone depleting Puron® refrigerant
- 10-year parts limited warranty1
- 5-year coastal corrosion parts limited warranty
Optional Features
- Optional labor warranty available
1See warranty certificate for complete details
Specifications
- BrandCarrier
- CFM1792
- CoastalTrue
- Compressor Stage1
- ConfigurationVertical
- Cooling Capacity17400
- FamilyComfort
- Line Voltage (60Hz)240V
- Nominal Seer14
- RefrigerantR410A
- Suction Line Size5/8"
- Tonnage1.5
- Voltage (Phase)208/230 V 1-Phase
- Air FlowVertical
- CFM Nominal1792
- Coil Guard TypeGrill
- CompressorScroll
- Compressor RLA9
- Compressor TypeScroll
- Condenser Motor HP1/12
- Condenser Motor Phase1
- Condenser Motor RPM1100 rpm
- Condenser Motor TypePermanent Split Capacitor
- EER11.5, 13
- Fan Diameter18
- Frequency60
- Full Load0.4 amp
- Gas Stages1-Stage
- Height33.60 in
- High PressureTrue
- High Pressure SwitchTrue
- InverterFalse
- LEED CertifiedFalse
- Length25.25 in
- Liquid Line FittingSweat
- Liquid Line Size3/8
- Liquid Line Size3/8 in
- Locked Rotor47.5 amp
- Low PressureTrue
- Low Pressure SwitchTrue
- LRA47.5
- Max Sound Level76
- Maximum Circuit Breaker20
- Maximum EER13
- Maximum Fuse Size20 amp
- Maximum Piping Length250
- Maximum SEER16
- Maximum Voltage253
- MCA12
- Metering DeviceTXV
- Minimum Ambient Temperature-20 °F
- Minimum EER11.5
- Minimum Heating Ambient Temperature-20
- Minimum SEER14
- Minimum Voltage197
- Motor Phase1
- Number Of Fan Blades2
- Outdoor Fan Motor FLA0.4
- Outdoor FPI20
- Outdoor Number of Rows1
- Package Quantity1 ea
- Rated Load9 amp
- Rows1
- SEER14
- Shipping Height33.6 in
- Shipping Length25.25 in
- Shipping Point38017
- Shipping Weight133 lb
- Shipping Width25.25 in
- Sound BlanketFalse
- Sound BlanketFalse
- Sound Level76 dBA
- Suction Line FittingSweat in
- Suction Line Size5/8
- UL ListedTrue
- UL RecognizedTrue
- Voltage208/230
- Weight111 lb
- Width25.25 in
Equipment Parts List
There is no data available for this product
