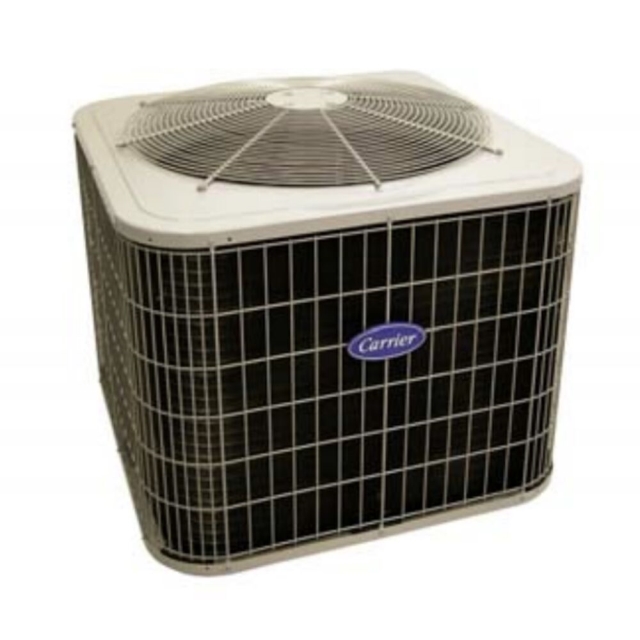

Comfort 1.5-Ton 13 SEER R410A AC Condenser (208/230 V 1-Phase)
This product has been superseded by
Comfort 1.5-Ton 13 SEER R410A AC Condenser (208/230 V 1-Phase)
Description
24ABB318C003
24A = Air Conditioner with Puron Refrigerant
B = Comfort
B = Puron
3 = 13 SEER
18 = 18,000 Btuh
C = Coastal
0 = Not Defined
0 = Not Defined
3 = 208/230 ---1
24A = Air Conditioner with Puron Refrigerant
B = Comfort
B = Puron
3 = 13 SEER
18 = 18,000 Btuh
C = Coastal
0 = Not Defined
0 = Not Defined
3 = 208/230 ---1
Standard Features
- WeatherShield™ protection featuring ArmorPlate™ coil coating, 100% paint coverage and WeatherArmor™ protection for superior sea coast corrosion resistance
- 13 SEER cooling efficiency
- Sound: as low as 75 decibels
- Single-stage operation
- Filter drier system protection from moisture and contaminants
- Non-ozone depleting Puron® refrigerant
- 10-year parts limited warranty1
- 5-year coastal corrosion parts limited warranty
Optional Features
- Optional labor warranty available
1See warranty certificate for complete details
Specifications
- BrandCarrier
- CFM1881
- Compressor Stage1
- Cooling Capacity18000
- FamilyComfort
- Gas Stages1-Stage
- Line Voltage (60Hz)240V
- Nominal Seer13
- RefrigerantR410A
- Tonnage1.5
- Voltage (Phase)208/230 V 1-Phase
- Air FlowVertical
- Condenser Motor HP1/12
- Condenser Motor Phase1
- EER11
- Height31.8125 in
- High PressureFalse
- InverterFalse
- LEED CertifiedFalse
- Length25.75 in
- Liquid Line FittingSweat
- Low PressureFalse
- Maximum Fuse Size20 amp
- Maximum Piping Length250 Ft.
- Minimum Ambient Temperature55° F °F
- Motor Phase1
- Package Quantity1 ea
- Rows1
- SEER13
- Shipping Height31.8125 in
- Shipping Length25.75 in
- Shipping Point38017
- Shipping Weight159 lb
- Shipping Width25.75 in
- Sound BlanketFalse
- Sound Level75 dBA
- Suction Line FittingSweat in
- UL ListedTrue
- UL RecognizedTrue
- Voltage208/230
- Weight128 lb
- Width25.75 in
Equipment Parts List
There is no data available for this product
